HORTRAYS X4 Series Full Spectrum 960W LED Grow Light

Description:
HORTRAYS X4 LED grow light fixture is a high performance top-lighting solution for commercial horticulture cultivation,for veg and flower with the greatest and typical spectrum for cannabis plants and other crops, which always require high light level.

Application:
> Vertical Farm
> Green House
> Indoor Farm
> Individual Indoor Grow Tent


    > Classical design,with DIY light bars,durable and flexible;
    > Top brand SAMSUNG full spectrum white LEDs and enhanced OSRAM 660nm red LEDs,up to 2.8μmol/J PPFD, delivered onto the plants at all full-cycle growing stages.
    > IP65 / IK08 Protection;
    > 120° beam angle;
    > Fan-free passive thermal design with excellent heat dissipation, noise-free to avoid interruption to the surroundings and longer life-span;
    > Sunlike spectrum with proven result, optimized for rapid growth and complete plant development;
    > Master controller with group control available, timing and dimming control makes your lighting system smarter and easier;
    > Intelligent control: 0/1-10V, PWM,DALI,Zigbee for Option;
    > No UV or IR and completely mercury free;
    > L90 > 56.000h;
    > Customized spectrum for special projects available;

    Options:
    > Driver: Meanwell,Inventronics,SOSEN;
    > LEDs: SAMSUNG white +OSRAM red,EPISTAR;
    > Controls and Dimming: 0/1-10V Knob, PWM,DALI,Zigbee;
    > Separated driver for better heat dissipation and easy installation and maintenance;
    > 6/8/10 Bars;
    Model No.

    HR-GL960-DGPX8X

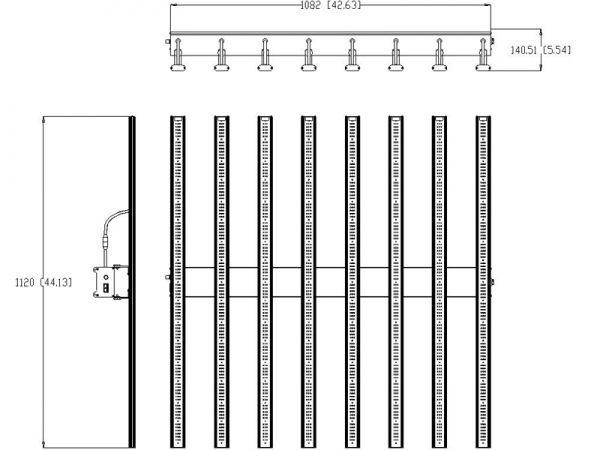

    Measurement/(inch/mm)

    42.63" (L) * 44.13" (W) x 5.54" (T) / 1082mm (L)*1120mm (W)*141mm (T)
    System Watts@277V/W

    960W
    LED Qty”/PCS

    (340W+16R)*8 Bars
    PPF Efficiency/μmol/J @277V

    2.8μmol/J
    Output PPF/μmol/s @277V

    2688μmol/s
    LEDs Light Source

    SUMSUNG+OSRAM (EPISTAR LEDs Optional)
    Rated Input Voltage/V

    AC100~277V, 50/60Hz (AC347~480V, 50/60Hz Optional)
    Spectrum

    Full spectrum +660nm red (Tailored Spectrum Availble)
    Amperage

    3.74A@277V
    Power Factor

    >0.95
    THD

    <10%
    UGR

    <25
    Light Distribution

    120°
    Thermal Management

    Passive
    LED Driver

    Meanwell,Inventronics,SOSEN Optional
    IP Rating

    IP65 (Indoor Wet Location Only)
    Dimming(Optional)

    0/1-10V, DALI,PWM,Zigbee for Option
    Mounting Height

    >6‘‘ (15.2cm) above Canopy
    Coverage

    6ft*6ft for Vegetative / 5ft*5ft for Flower
    Protection Class

    ClassⅠ
    Finishing Color(Optional)

    Black RAL9017(Standard) / White RAL9016 Optional
    Material

    Aluminum+PC
    Lifespan/hrs

    >56.000 Hrs (Ta=30℃@L90)
    Operation Temp/℃

    - 40°C to + 65°C(-40°F to 149°F)
    Storage Temp/℃

    - 40°C to + 65°C(-40°F to 149°F)
    Certificate

    ETL,UL8800,DLC,CE(EMC+LVD),RoHS,SAA,RCM Available
    Remarks:
    1. Other requirements on driver or LEDs brand, please contact our salesman representative.
    2.1.5m (5") America plug as standard configuration, other types of plug is available against requirements, please contact our sales representative.
    3. The fixture is designed to be used in a high-humidity environment but NOT intended to be used outdoors or directly exposed to water.
    Here below is recommendation for adjusting mounting height between LED grow light and the plants according to different growing stage.

    Remarks:
    a. For wired control system,0/1-10V dimming driver is the basical requirement;
    b. Bluetooch wireless control function reserved,with timer / electronic switch / dimmable / group control functions;
    c. Maximum distance between controller and the 1st light fixture is 15m,10m for default,2m default between light fixture,50PCS
    light fixture linked maximum,100PCS maximum for each zone,and 200PCS for AB zones;
    Remarks:
    a. For wireless control system,0/1-10V dimming driver is the basical requirement;
    b. Timer / electronic switch / dimmable / group control functions;
    c. 30m distance between gateway and light fixture is recommended for wireless control,100m maximum but not recommended;

    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    HR-GL720-DGPX6X
    11.8
    1180*290*230
    14.4
    1PCS/CTN
    HR-GL960-DGPX8X
    15.9
    1180*290*230
    19.6
    1PCS/CTN
    HR-GL1200-DGPX10X
    19.4
    1180*290*230
    24.6
    1PCS/CTN
