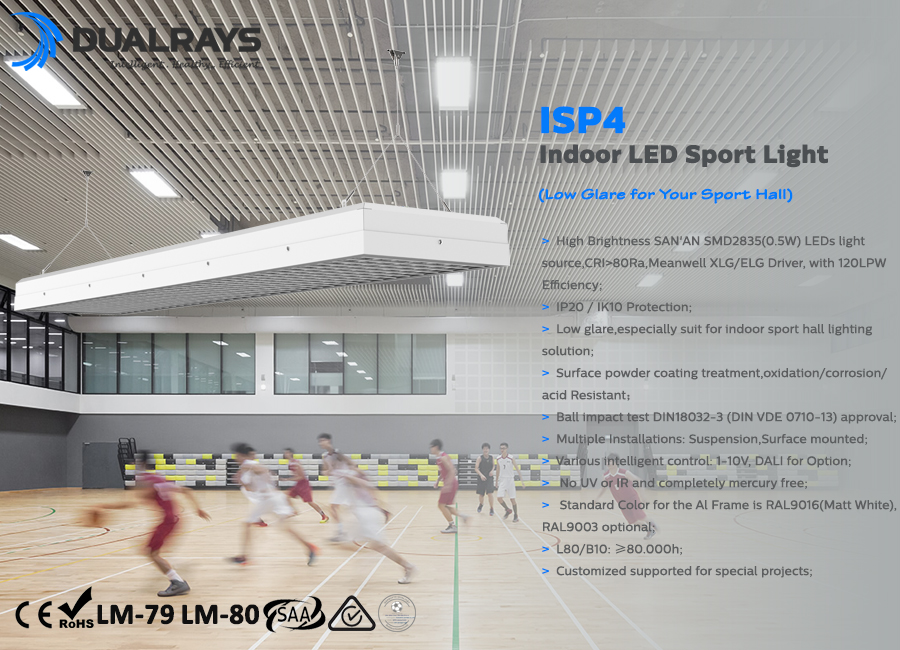

ISP4 Indoor Sport Light

Efficiency:
BASELine:
PROLine:     120LPW
PRIMELine:

Features:
>  High Brightness SAN‘AN SMD2835(0.5W) LEDs light source,CRI>80Ra,Meanwell XLG/ELG Driver, with 120LPW Efficiency;
>  IP20 / IK10 Protection;

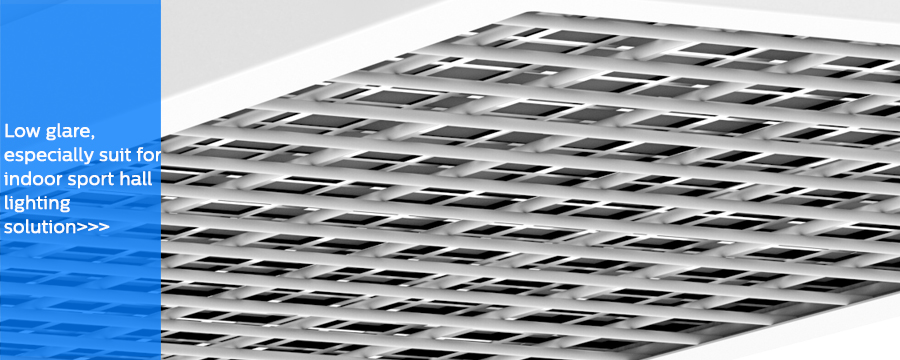

>  Low glare,especially suit for indoor sport hall lighting solution;
>  Surface powder coating treatment,oxidation/corrosion/ acid Resistant；
>  Ball impact test DIN18032-3 (DIN VDE 0710-13) approval;

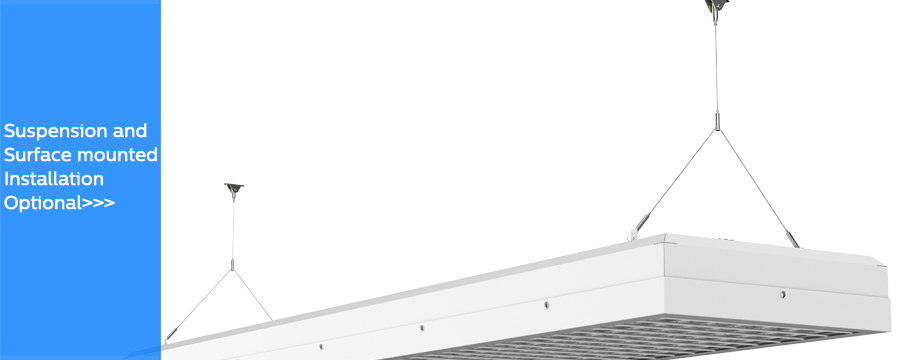

>  Multiple Installations: Suspension,Surface mounted;
>  Various intelligent control: 1-10V, DALI for Option;
>  No UV or IR and completely mercury free;
>  Standard Color for the Al Frame is RAL9016(Matt White), RAL9003 optional;
>  L80/B10: ≥80.000h;
>  Customized supported for special projects;



    Options:
    > Driver: Meanwell XLG/ELG;
    > Controls and Dimming: 1-10V / DALI Dimming;
    > Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;
    > Installation : Suspension, Wall Mounting;
    > Housing Color: RAL9016(Matt White) for Standard, RAL9003 optional;




    > Replacement for fluorescent NCF;
    > School;
    > Sport Club;

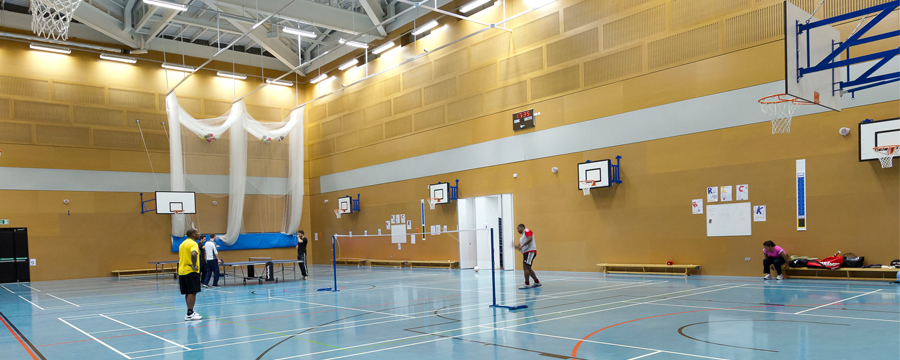

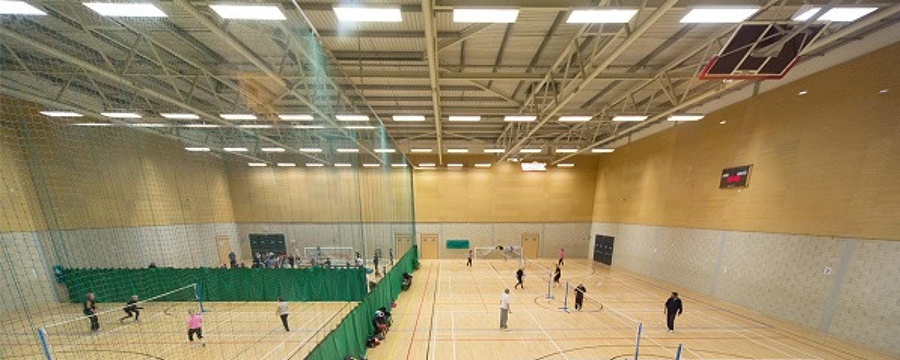

    > Sport Hall;
    > Community;

    Model No.

    DR-ISPL32152-100HD32X

    DR-ISPL32152-150HD32X

    DR-ISPL32152-200HD32X
    System Watts/W

    100W

    150W

    200W
    System Efficiency/LPW

    120LPW
    Lumen Output/lm

    12.000±5%

    15.000±5%

    18.000±5%
    Rated Input Voltage/V

    AC100~277V, 50/60Hz
    LEDs Light Source

    SMD2835
    SDCM

    <5 (≤3 Optional)
    CCT/K

    5000K for Standard (3000K/4000K/5700K/6500K Optional)
    CRI/Ra

    >80Ra (>70Ra for Option)
    Power Factor

    >0.92
    THD

    <10%

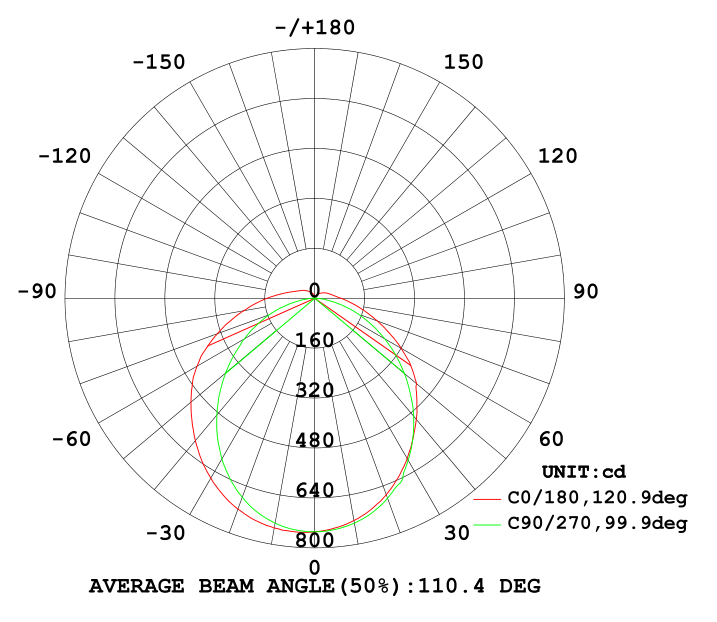

    Beam Angle(Optional)

    120°
    UGR

    <19
    Surge Protection

    4~6KV SPD built in Driver
    LED Driver

    Meanwell XLG/ELG Optional with 1-10V dimming,output adjustable driver
    IP Rating

    IP20
    Dimming(Optional)

    1-10V, DALI
    Safety Protection

    Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
    Start Time

    0.5s
    Protection Class

    ClassⅠ
    Finishing Color(Optional)

    RAL9016 Matt White for standard,RAL9003 Optional
    Material

    Aluminum+PC
    Lifespan/hrs

    80.000 Hrs (Ta=30℃@L80/B10)
    Operation Temp/℃

    -40°C to + 50°C(-40°F to 122°F)
    Storage Temp/℃

    - 40°C to + 65°C(-40°F to 149°F)
    Installation(Optional)

    Suspension / Ceiling Mounting Optional
    Certificate

    CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

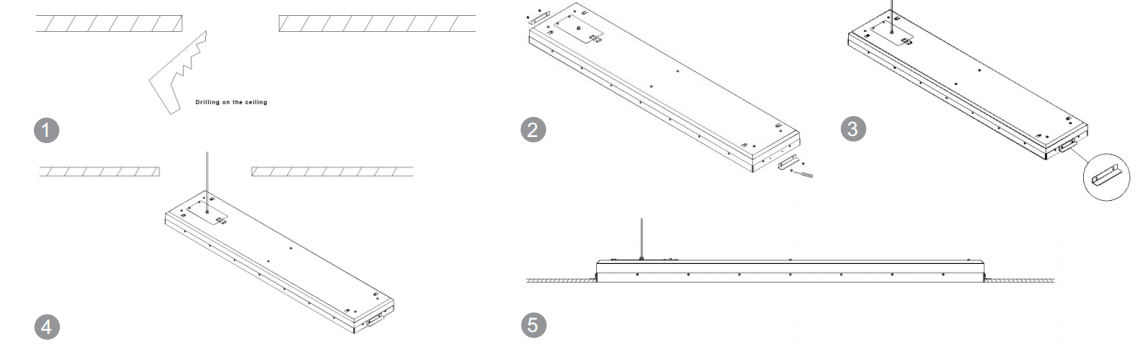

    I:  Ceiling Mounted

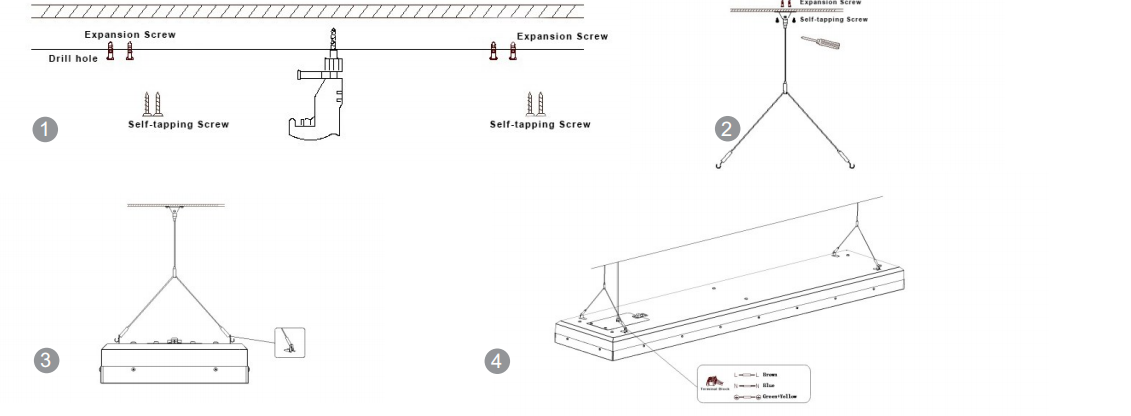

    II:  Suspension













    Model No.
    Net Weight/Kg
    Outer Carton Size/mm
    Gross Weight/Kg
    QTY”/CTN
    DR-ISPL32152-100HD32X
    12.8
    1580*380*140
    13.8
    1PCS/CTN
    DR-ISPL32152-150HD32X
    13.5
    1580*380*140
    14.6
    1PCS/CTN
    DR-ISPL32152-200HD32X
    14.6
    1580*380*140
    15.9
    1PCS/CTN
